Lightweight 52cc Earth Auger for Forestry, Fencing & Ice Fishing | XH-A520

High-Torque 52cc Powertrain: Outputs smooth, continuous rotational force (170-200 RPM) to slice through dense clay, packed topsoil, and frozen ground without mechanical stalling.
Lightweight Solo Ergonomics: At an ultra-competitive bare engine weight of 11.1 kg, this lightweight earth auger minimizes user fatigue, making it a highly requested fleet model for industrial rental yards.
Sub-Zero Reliable CDI Start: Optimized electronic ignition ensures instant, low-effort pull starts in freezing climates, making it an elite multi-season choice for winter ice fishing distribution markets.
Low Maintenance, High B2B ROI: Featuring a heavy-duty metal body, suction-type carburetor, and easy-access filter components, this tool is built for intensive rental cycles, guaranteeing low warranty claim rates for global importers.

Send email to us Contact us

Product Detail

Product Overview

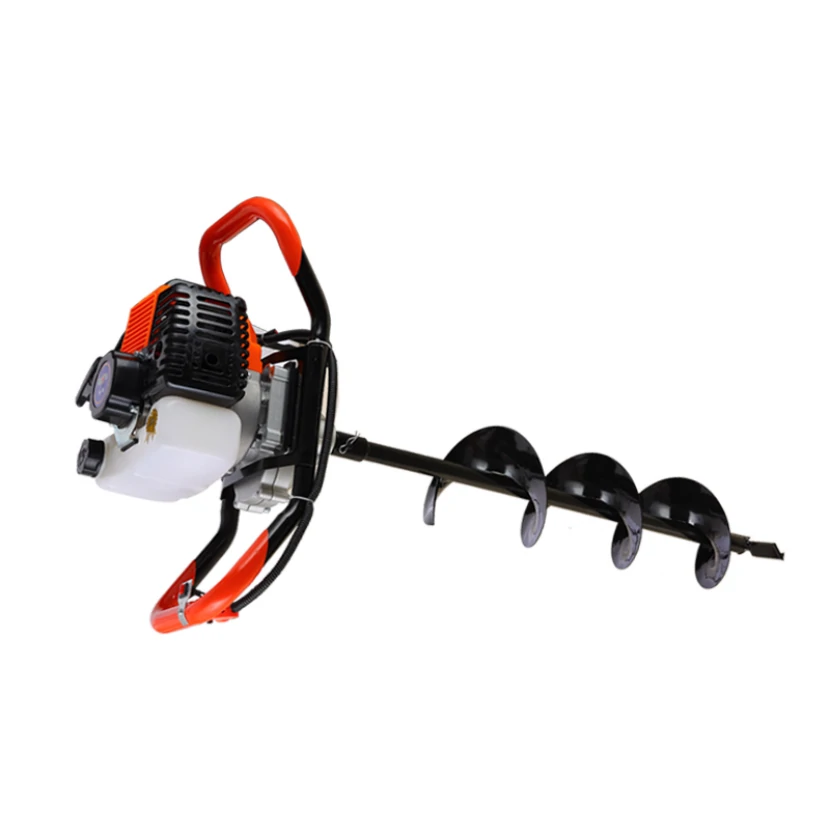

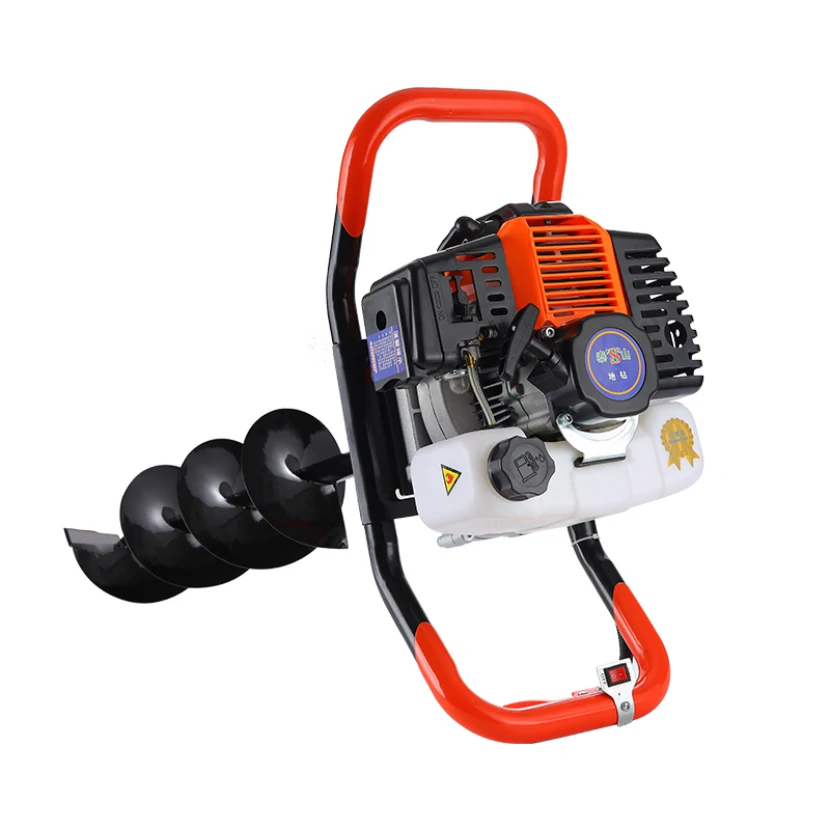

XH-A520 is a commercial-grade, single-operator powerhead designed to deliver high torque without the weight of bulky, industrial machinery. Driven by a high-velocity 52cc 2-stroke gasoline engine, this premium lightweight earth auger outputs 1.4kW of power balanced by a heavy-duty 34:1 reduction gearbox.

Engineered specifically for solo operators, the XH-A520 bridges the gap between massive, towable machinery and sluggish manual tools. Weighing a highly competitive 11.1 kg (bare engine), this portable earth auger handles a wide array of bits ranging from 200mm to 400mm. Its optimized all-weather CDI ignition ensures instant starts under scorching summer sun or sub-zero winter freeze, making it a highly profitable, all-season inventory asset for international distributors, rental yards, and retail wholesalers.

Core Product Advantages & Selling Points

High-Torque 52cc 2-Stroke Powertrain

At the core of the XH-A520 is an optimized 52cc earth auger motor running at a 34:1 gear reduction. This delivers an output torque profile that smoothly cuts through compacted clay, gravelly soil, and thick sheet ice at 170-200 RPM without mechanical jamming or thermal stalling.

High-Margin Portable & Lightweight Construction

Weighing in at just 11.1kg without a bit, this unit stands out as a highly market-competitive lightweight earth auger. The balanced, compact chassis minimizes strain on a lone operator, reducing job site fatigue while fitting effortlessly into utility trucks, trunks, or winter ice-fishing sleds.

Sub-Zero All-Weather Quick Start

Equipped with an advanced Electronic CDI system and an easy-access fuel primer bulb, the engine fires up reliably in harsh freezing weather. This smooth cold-start capability makes the XH-A520 highly sought after by commercial winter ice fishing suppliers and multi-season utility fleets.

Rugged Durability & Low Return Rates

Featuring a heavy-duty structural metal frame and a wear-resistant reduction gearbox, it is built to withstand rigorous industrial rental yard cycles. The easy-access layout allows for toolless air filter cleaning and rapid maintenance, ensuring low warranty 52cc earth auger

Technical Specifications

Parameter	Specifications
Product Name	Single-Person Gas-Powered Earth Auger
Model Number	XH-A520
Engine Type	2-Stroke, Single Cylinder, Forced Air-Cooled Petrol Engine
Displacement	52 CC
Power Output / Horsepower	1.4 kW / 3000 R.P.M.
Ignition System	Electronic CDI (Capacitor Discharge Ignition)
Carburetor Type	Suction Type (Reliable operation at all workspace angles)
Gearbox Reduction Ratio	34:1
Drill Rotation Speed	170 - 200 RPM
Fuel / Oil Mixture Ratio	Petrol / 2-Cycle Engine Oil Ratio - 25:1
Fuel Tank Capacity	0.6 Liters
Compatible Auger Bit Diameters	200mm, 250mm, 300mm, 400mm
Net Weight (N.W. Engine Bare)	11.1 kg
Engine Body Dimensions	62 x 41 x 30 cm
Export Packaging Unit	Engine: 2 pcs/ctn \| Auger Bit: 1 pc/ctn
Customized B2B Services	Full OEM/ODM Bulk Customization Available

All-Season Commercial Applications

Agricultural & Boundary Fencing: Drills fast, straight post holes for vineyard trellises, property dividing lines, and livestock perimeter fences.
Landscaping & Horticulture: Perfect for planting trees, commercial saplings, shrubs, and digging deep root holes for orchard fertilization and aeration.
Winter Sports & Commercial Ice Auguring: Easily drills uniform, clean ice holes on frozen lakes in seconds without binding, perfect for winter fishing operations.
Civil Substructures & Construction: Bores clean foundation footings for patios, gazebos, heavy property banners, tents, and temporary event infrastructure.

52cc earth auger

Step-by-Step B2B Fleet Operating Guidelines

1. Fueling & Pre-Start Configuration

Mixture Calibration: This is a high-performance 2-stroke engine. Operators must prepare a fresh gasoline and 2-cycle engine oil mixture at a 25:1 ratio. Never introduce pure unleaded gasoline directly into the tank, as this will result in immediate engine seizure and void the warranty.
Safety & PPE Check: Operators must wear industrial protective goggles, non-slip work gloves, steel-toed boots, and snug, protective clothing away from rotating components.
Site Survey: Confirm the coordinates of underground utility paths (electrical lines, plumbing, gas mains) before operating this equipment.

2. Ignition & Operation Mechanics

Rest the portable earth auger flat on level ground, ensuring the bit does not touch any surface.
Flip the engine switch to the "ON" position, depress the primer bulb 3 to 5 times until fuel fills the viewport, and close the choke lever (for cold starts).
Hold the frame firmly and pull the recoil starter rope smoothly. Once the engine starts, ease the choke back to the open position and let it idle for 30–60 seconds to warm up.
Align the bit vertically over your drilling target, grip both handles firmly, and engage the throttle steadily. Let the weight of the machine guide the depth—do not slam or force the auger downward to avoid jamming.
Upon reaching your target depth, release the throttle trigger and pull the rotating bit out slowly while the engine returns to an idle.

Turnkey OEM/ODM Wholesale Customization Services

As a leading garden machinery manufacturer, XINGHU POWER offers premium manufacturing solutions for global brands, importers, and bulk distributors:

Custom Brand Identity: Custom paint colors, corporate brand logos, and specific instruction decals applied directly at the factory to match your brand's aesthetic.
Bespoke Product Bundling: Flexible packing options (2 engines per carton, custom length and diameter bits packed per unit) optimized to maximize container space and drastically reduce your ocean freight costs.
Global Supply Chain Compliance: Guaranteed manufacturing consistency backed by strict industrial quality controls and international safety certifications to protect your regional market reputation.
