196cc Earth Auger for Fencing & Tree Planting | XH-A196
Product Overview
XINGHU XH-A196 is an industrial-grade, commercial-duty powerhead engineered to dominate the most challenging drilling and boring projects. Driven by a massive 196cc 4-stroke Loncin engine pushing out 4 kW of rated power and 12Nm of brute torque, this professional 196cc earth auger is purpose-built for heavy-duty dual-operator deployment.
Unlike standard lightweight tools, the XH-A196 operates on pure unleaded gasoline—completely eliminating the need for messy oil mixing. With its heavy-duty 4-handle balanced frame and massive 600mm maximum drilling diameter capability, this powerhouse handles compacted dirt, deep clay, and frozen winter ice with industrial efficiency, making manual digging a thing of the past.
Core Product Advantages & Selling Points
196cc Commercial 4-Stroke Power (No Fuel Mixing)
At the heart of the machine is a premium Loncin 196cc OHV engine that runs exclusively on pure unleaded gasoline. This eliminates the downtime, calculation errors, and engine failures associated with pre-mixing 2-stroke oil, saving time for fleet owners and contractors.
Ergonomic Dual-Operator Framework
Boring large-diameter holes creates immense counter-torque. The XH-A196 is engineered with a professional 4-handle balanced control system allowing two operators to share the load. This heavy-duty structural layout dampens vibration, reduces operator fatigue, and provides absolute stability when drilling through rocky or roots-infestated terrain.
Industry-Leading 600mm Drilling Capacity
Backed by a premium reduction gearbox and 12Nm of continuous net torque, this machine is a premium standout in our commercial earthing auger lineup. It supports heavy-duty auger bits up to 600mm (24 inches) in diameter, making it capable of setting massive foundation piers and large structural utility poles.
Continuous High-Load Cooling System
Engineered with advanced structural heat dissipation shrouds and a heavy-duty double-element air filter, the engine maintains peak mechanical efficiency under direct sunlight and high-ambient construction environments without thermal stalling or bogging down.
Technical Specifications
| Parameter | Specifications |
| Product Name | Dual-Operator 4-Stroke Earth Auger |
| Model Number | XH-A196 |
| Engine Model | Loncin LC1P70F (Commercial Grade) |
| Engine Type | 4-Stroke, Air-Cooled, OHV Single Cylinder |
| Displacement | 196 CC |
| Rated Power Output | 4.0 kW |
| Net Torque | 12 Nm |
| No-Load Speed | 3600 ± 200 r/min |
| Bore × Stroke | 70 × 51 mm |
| Carburetor Type | Diaphragm Type (Consistent performance at all angles) |
| Air Filter System | Heavy-Duty Double-Filter Element |
| Maximum Drilling Diameter | 600 mm (approx. 23.6 inches) |
| Fuel Capacity | 1.4 Liters (Pure Unleaded Petrol Only) |
| Engine Oil Capacity | 0.5 Liters |
| Gross Weight (G.W.) | 30.5 kg |
| Packaging Configuration | 1 unit / carton |
| Package Dimensions | 58 x 43 x 51.5 cm |
| Customized Service | OEM/ODM Deep Customization Available for Global Brands |
Versatile Application Scenarios
-

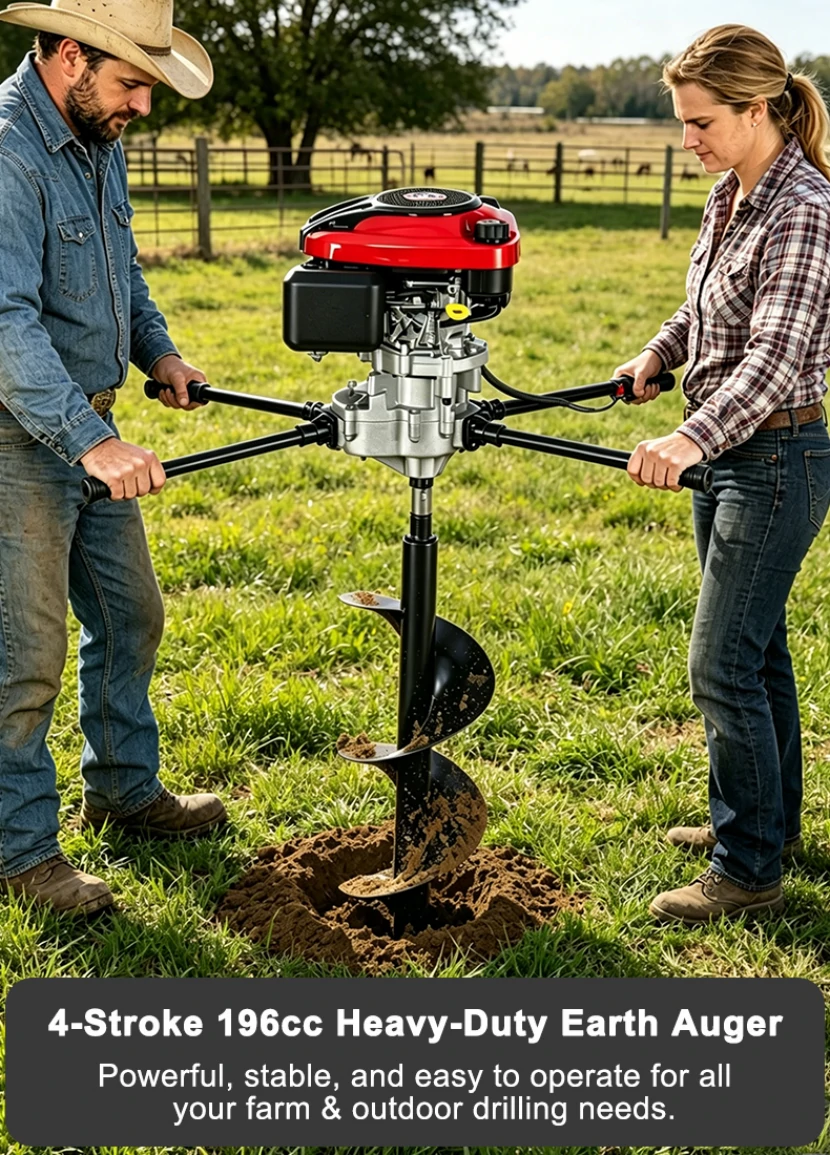

Commercial Fencing & Guardrails: Drills perfectly uniform, vertical post holes for agricultural boundaries, commercial security fences, and high-tensile property line railings in seconds.
-
Large-Scale Tree Planting & Landscaping: Speeds up municipal greening projects and orchard cultivation by boring large-diameter root cavities for saplings, shrubs, and deep aeration or fertilization trenches.
-
Construction & Structural Footings: Creates clean, perfectly round cavities for deck piers, gazebo supports, pergolas, solar panel ground mounts, and utility lighting posts.
-
Winter Ice Boring: Highly adaptable as a heavy-duty ice auger for professional winter fishing camps and utility maintenance crews needing to bore through thick, multi-layered sheets of hard ice.
4-Stroke Engine Maintenance & Safety Boundaries
Failure to adhere to proper operating guidelines can cause serious mechanical damage or injury. Please review the mandatory operating parameters below:
-
Engine Oil Regulation: This is a 4-stroke engine. You must check the engine oil level via the dipstick before every single start. Never run the machine with low or contaminated oil. Change the 0.5L oil reservoir regularly.
-
Site Assessment Check: Always check with local property blueprints or utility lines to verify there are no hidden underground cables, water mains, or gas pipelines before introducing the drill bit to the soil.
-
Obstruction Management: Do not force or slam the machine into hard surfaces. If the auger encounters a massive rock or thick structural roots, immediately ease off the throttle to prevent gearbox locking.
-
Storage Procedures: Allow the machine to cool completely before refueling or storage. Clean away accumulated dirt and mud after every deployment. For long-term storage, run the carburetor dry, drain the fuel tank, and store the machine in a dry, ventilated area completely isolated from open flames or heat sources.
