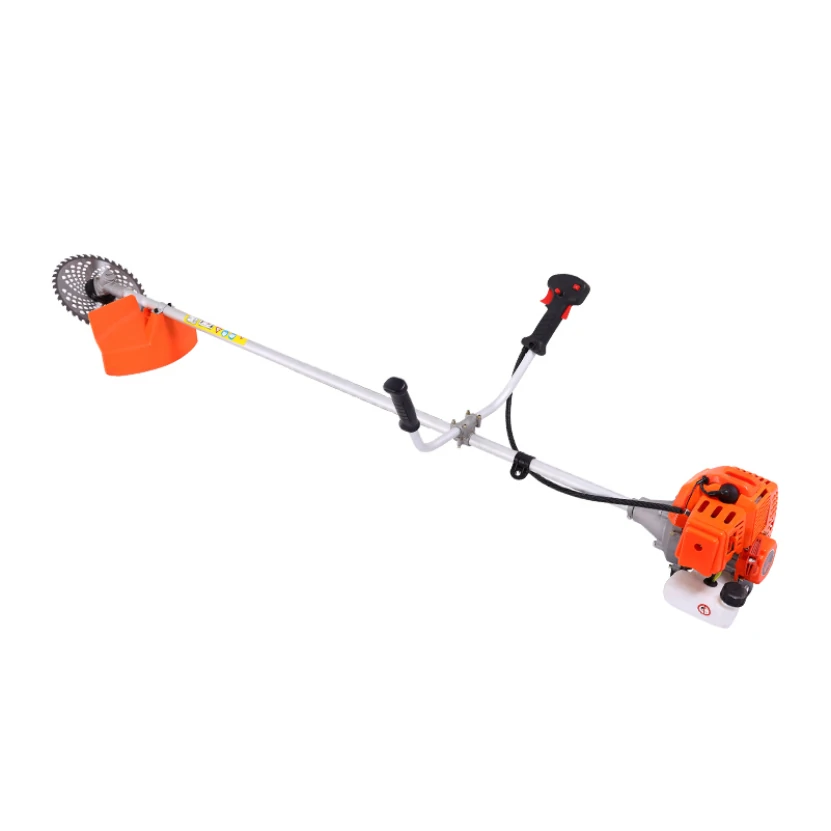

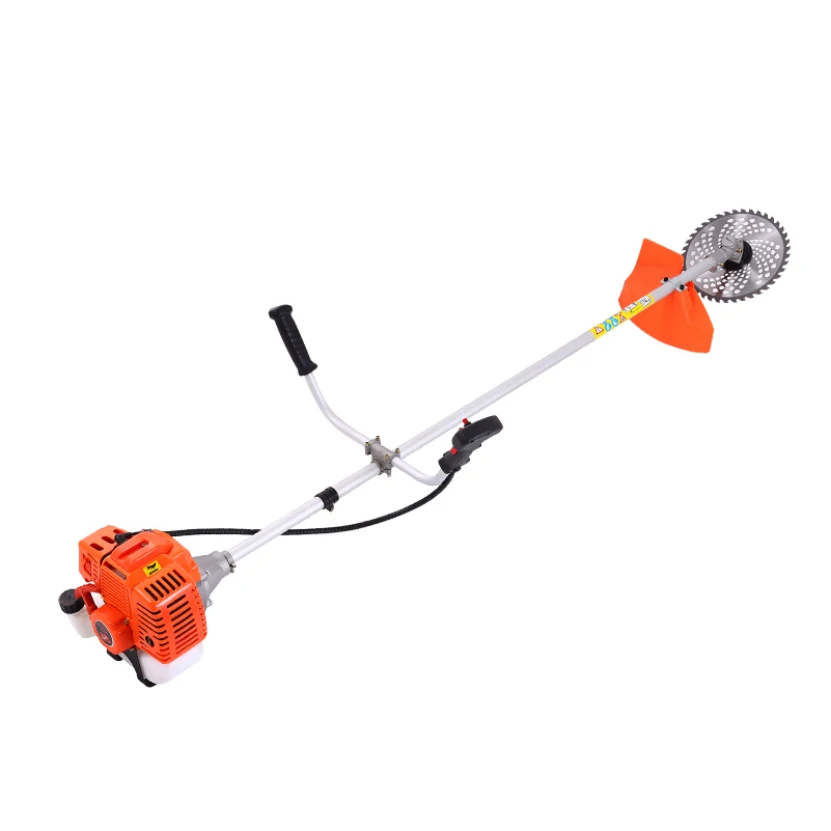

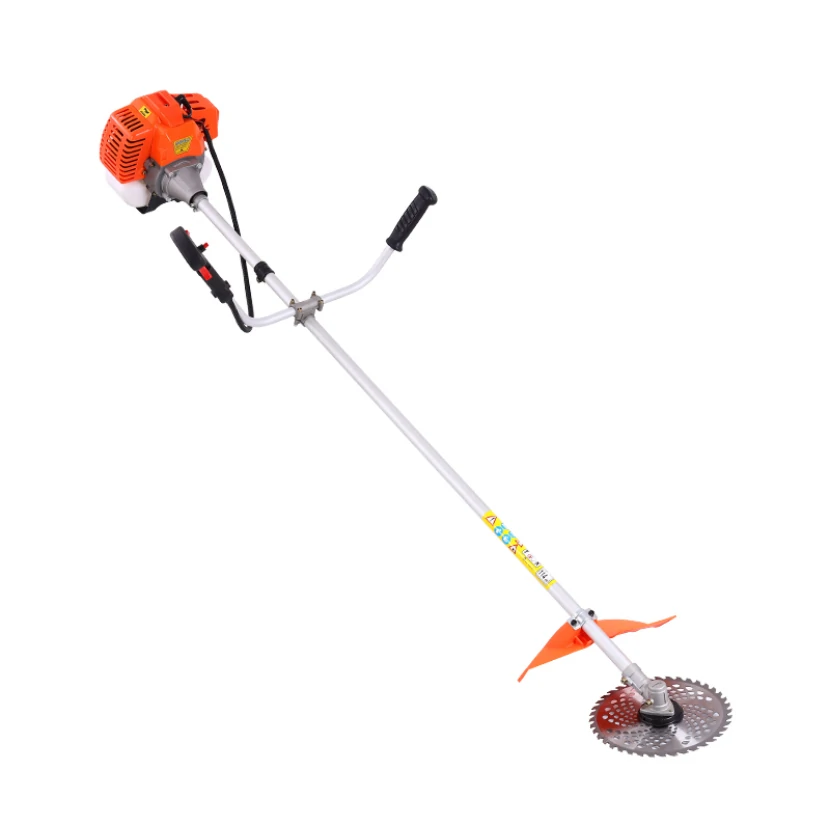

42cc Brush Cutter & Grass Trimmer | XH-CG430
Description
XH-CG430 is a high-performance 2-stroke gasoline brush cutter designed for heavy-duty vegetation management. Powered by a robust 1E40F-5 engine, it delivers exceptional cutting power and durability for professionals and homeowners alike. This 42cc brush cutter is engineered to handle tough overgrowth, ensuring efficient performance in the most demanding outdoor environments.
Core Selling Points
-

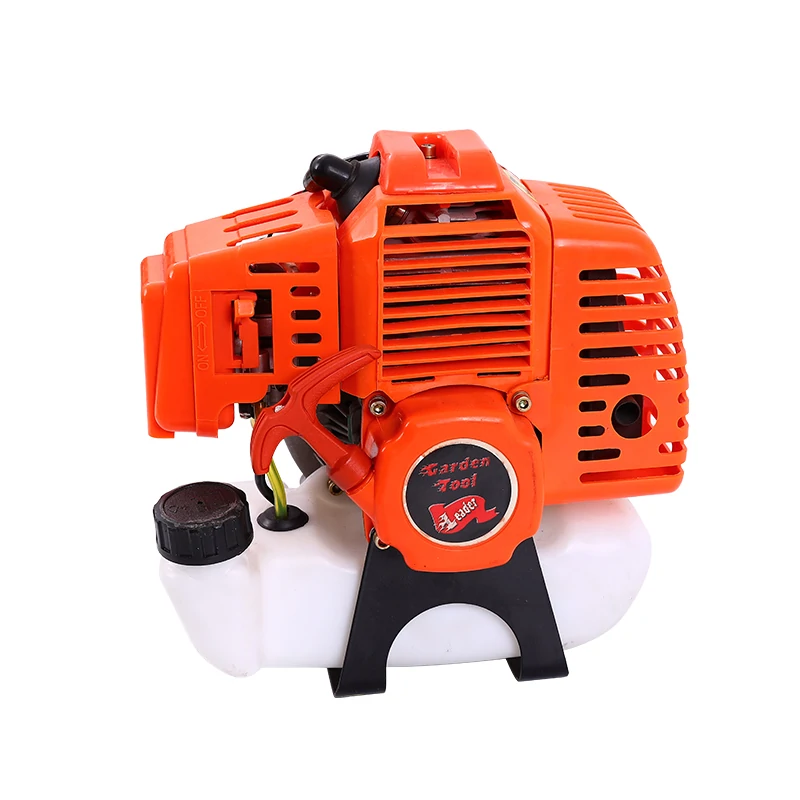

High-Power Engine: The 1E40F-5 engine delivers 1.25KW of power, easily cutting through thick weeds and small branches.
-
Ergonomic Design: The 1650mm long operating rod and ergonomic U-handle reduce user fatigue during extended use.
-
Large Fuel Capacity: With a 1400ml fuel tank, this model minimizes downtime from refueling.
-
Durable Build: Engineered with high-quality materials to withstand heavy daily use and reduce maintenance requirements.
Technical Specifications
| Item | Specification |
| Product Model | XH-CG430 |
| Engine Model / Type | 1E40F-5 / 2-Stroke, Air-cooled, Single Cylinder |
| Displacement | 42.7cc |
| Rated Power | 1.25KW / 8500rpm |
| Operating Rod Length | 1650 mm |
| Fuel Tank Capacity | 1400 ml |
| N.W. / G.W. | 9kg / 11kg |
| HS Code | 8433110000 |

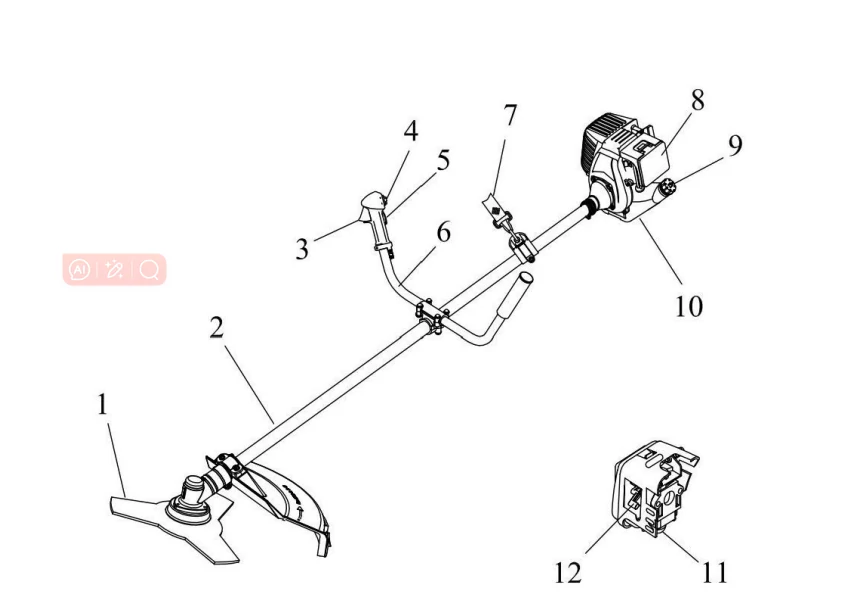

Spare Parts & Location
-
BLADE: High-strength circular blade engineered for grass, weed, and dense brush cutting. Note: Full safety gear including harness, metal shield, and U-handles are mandatory for blade operation.
-
DRIVE SHAFT ASSEMBLY: Features a precision-engineered internal liner and a high-durability flexible drive shaft for smooth power transmission.
-
THROTTLE TRIGGER: Spring-loaded mechanism that automatically returns to idle. For optimal performance and engine longevity, press the trigger gradually during acceleration. Crucial: Do not hold the trigger during startup.
-
IGNITION SWITCH: An intuitive "slide switch" integrated into the throttle housing. Slide FORWARD to the "Run" position and BACK to "STOP" the engine instantly.
-
SAFETY LEVER: A critical security feature; this lever must be fully compressed before the throttle can be engaged for acceleration.
-
U-HANDLE: Ergonomically designed handle that can be adjusted to the operator’s preferred angle for maximum comfort and control.
-
HARNESS ASS'Y: A load-distributing suspension system that secures the machine to the operator. Features adjustable straps to balance weight and reduce fatigue.
-
AIR CLEANER COVER: Protects the internal engine components; houses a high-efficiency, replaceable felt filtration element.
-
FUEL TANK LID: Precision-threaded cap ensuring a leak-proof seal for the fuel system.
-
FUEL TANK: High-capacity reservoir equipped with an integrated fuel filter to ensure clean fuel delivery to the engine.
-
PURGE BULB: A manual priming pump. Depress 7 to 10 times before starting to evacuate air and stale fuel, ensuring fresh fuel reaches the carburetor for a quick start.
-
CHOKE: Conveniently located on top of the filter cover to regulate the air-fuel mixture during cold starts.
Safety Warnings & Operation
-
Danger Zone: No person except the operator is allowed within a 15-meter radius danger zone.
-
Personal Protection: Operators must wear eye, ear, face, foot, and leg protection. Avoid loose jewelry or clothing.
-
Operation: Push the purge bulb 7-10 times before starting to bring fresh fuel to the carburetor.
-
Footwear: Do not wear open-toed footwear or go barefoot; use non-slip safety shoes.
Application
Following our standard multi-scenario efficiency, the XH-CG430 effectively handles:
-
Road Cleaning & Pathway Clearance: Easily trims overgrown grass and weeds along municipal roads and pedestrian paths.
-
Forest Fire Suppression: Used to clear dry brush and create firebreaks to prevent the spread of wildfires.
-
Urban & Road Snow Blowing: Assists in clearing light frost or crystalline debris when using specialized attachments.
-
Construction Site Dust & Gravel Removal: Clears weeds and debris around construction perimeters to maintain a safe worksite.
-
Lawn Debris & Trash Cleaning: Ideal for maintaining large residential yards and removing organic debris.
-
Agricultural & Orchard Maintenance: Perfectly suited for clearing dense brush around crops and trimming field edges.
