Small Hand Held Garden Trimmer | XH-HT6000W
Product Overview
XH-HT6000W is a commercial-grade, multi-blade versatile small hedge trimmer engineered to deliver rapid, clean cuts across dense garden foliage, municipal hedges, and commercial tea plantations. Driven by a high-performance 1E33F 25.6cc 2-stroke air-cooled gasoline engine paired with a advanced CDI ignition system, this lightweight cutting platform generates 0.7 kW of rated power at 7500 rpm.
Core Advantages & Selling Points
Equipped with a pump-film carburetor and a multi-angle 90° rotatable handle, this agile 5.5 kg hand-held duster ensures precise maneuverability and excellent shape control, offering wholesale buyers, nursery owners, and landscape contractors a high-durability tool built for high-turnover field utilization.
-
Non-Stalling 12-Hour Continuous Run: Outfitted with an optimized 25.6cc engine framework that fights thermal expansion, ensuring non-fading trimming power across long commercial shifts.
-
Widened 24" SK5 Alloy Blade: Features high-strength, double-edged SK5 steel blades engineered for razor-sharp edge retention and smooth cutting of dense branches.
-

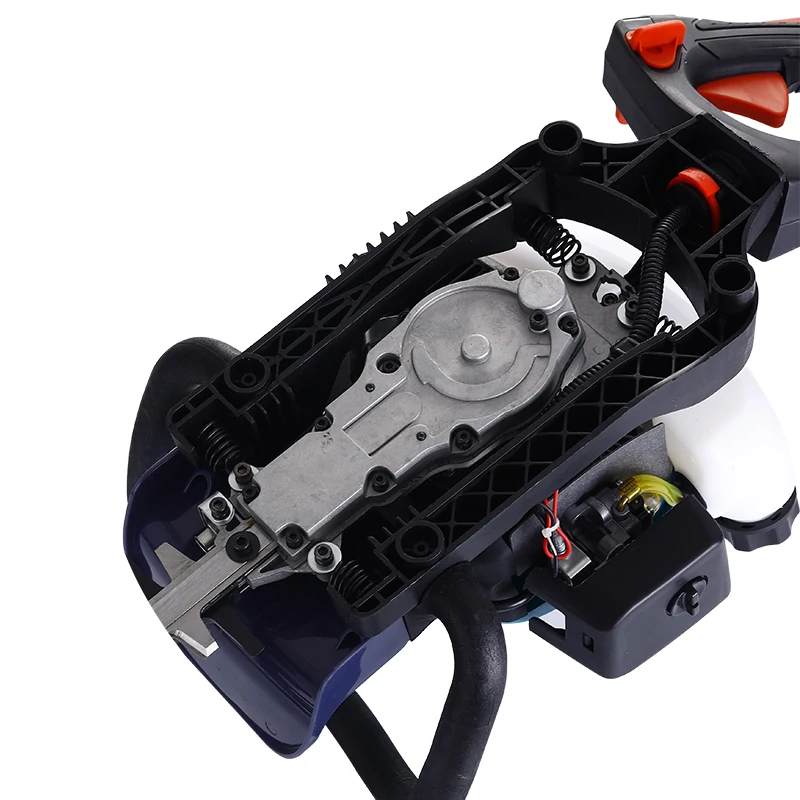

Four-Spring Damping Anti-Vibration: Minimizes structural engine resonance through an internal 4-spring shock absorption cradle to isolate the operator's hands from fatiguing vibration.
-
90° Rotatable Ergonomic Handle: Adjusts instantly to multiple working angles with a quick-press locking mechanism, facilitating swift vertical shaping and side-shrub contouring.
-
Enlarged Leaf Collection Baffle: Designed with an expanded protective shield that prevents twigs from scattering, keeping the job site tidy while reducing clean-up timelines.
Technical Specifications
| Item Parameter | Specifications & Core Metrics |
| Product Name | Gasoline Hedge Trimmer for Yard Garden and Shrub Trimming |
| Model Number | HT6000W (XH-HT6000W) |
| Engine Model | 1E33F (High-Speed Industrial Variant) |
| Engine Type | 2-Stroke, Air-Cooled, Single-Cylinder Gasoline Engine |
| Rated Power Output | 0.7 kW / 1000W Peak Capacity Threshold |
| Displacement | 25.6 CC |
| Ignition Configuration | CDI (Capacitor Discharge Ignition) System |
| Rated Engine Speed | 7500 r/min – 8000 r/min |
| Trimmer Blade Length | 600 mm (24 Inch) |
| Blade Composition | Widened & Thickened Premium SK5 Alloy Steel |
| Carburetor Type | Pump-Film Type (Maintains Steady Multi-Angle Operation) |
| Fuel Tank Capacity | 600 ml |
| Gas-to-Oil Mixing Ratio | 25:1 (Premium Gasoline to 2-Stroke Engine Oil) |
| Net Weight / Gross Weight | 5.5 kg / 7.0 kg |
| Machine Dimensions | 357 × 511 × 540 mm |
| Packing Dimensions | 107 × 27 × 23 cm |
| HS Code | 8433190000 |
Explore more gasoline powered hedge trimmer.
All-Season Commercial Applications
-
Precision Hedge Shaping & Shrub Care: Delivers clean, level trimming on complex boxwood hedges, topiary displays, and thick perimeter shrubs across residential estates and corporate parks using its small hand held garden trimmer chassis.
-
Commercial Tea Plantation Picking: Serves as a high-torque, non-stalling harvesting tool optimized for rapid, uniform tea leaf gathering and seasonal pruning sweeps across high-altitude fields.
-
Nursery & Ornamental Tree Maintenance: Offers precise, single-handed control for nursery operators needing to trim delicate decorative saplings, overgrown brush, and botanical row stock.
-
Municipal Roadside Greenery Upkeep: Provides municipal road crews with a highly mobile, grid-independent tool to slice back overgrown highway brush, visual obstructions, and trail pathways using this versatile small garden trimmer.

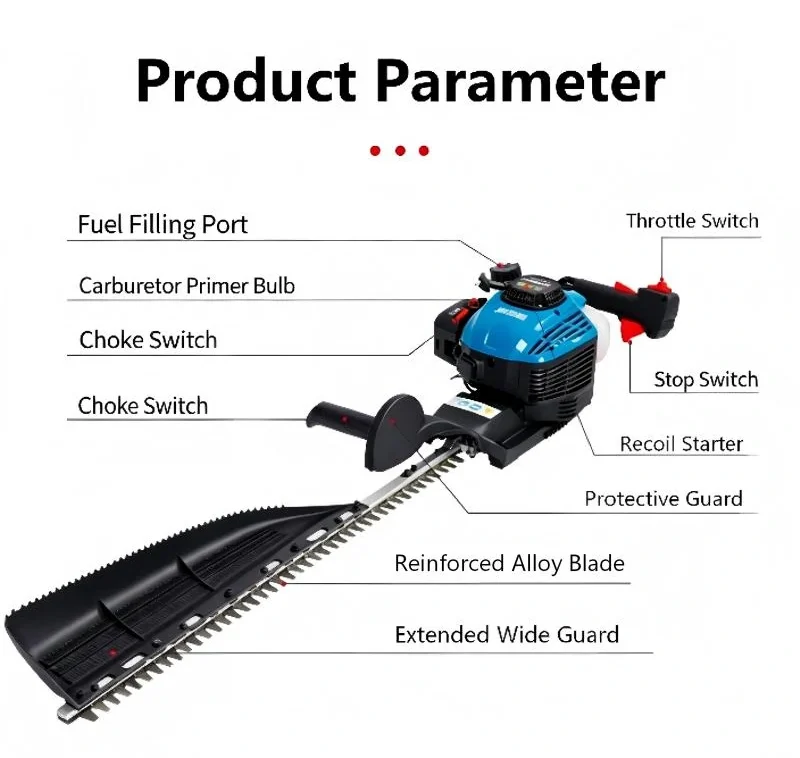

Product Anatomy & Component Layout
-
Fuel Filling Port: Conveniently positioned top-access neck for rapid refueling mixes.
-
Carburetor Primer Bulb: Transparent fuel priming bulb to ensure immediate, cold-start ignition.
-
Dual-Grip Choke Switches: Ergonomically placed levers optimizing fast fuel-air mixture activation.
-
Integrated Control System: Rear-handle configuration combining the Throttle Switch and an instant-response Stop Switch.
-
Heavy-Duty Recoil Starter: Low-resistance pull mechanism requiring minimal operator effort.
-
Multi-Tier Safety Guards: Equipped with a rugged Protective Guard at the handle base paired with an Extended Wide Guard (Baffle) running along the blade to clear clippings efficiently.
-
Premium Cutting Assembly: Driven by high-strength Reinforced Alloy Blades for clean, commercial-grade trimming precision.
Safety, Setup & Operating Instructions
Pre-Use Safety & Fluid Preparation
-
Fuel Formulation: Always mix premium unleaded gasoline with high-quality 2-stroke engine oil at a strict 25:1 ratio using the provided mixing bottle. Never run the machine on pure gasoline. Never refuel a hot, running engine.
-
Hardware Inspection: Check the trimmer for loose fasteners, structural damage, or visible fuel leaks before starting. Inspect the SK5 blade assembly; ensure it is sharp, clear of stone debris, and well-lubricated.
-
Personal Protection: Operators must wear complete safety gear: wrap-around goggles, heavy-duty work gloves, ear protection, and rugged non-slip safety boots. Avoid wearing loose garments or dangling jewelry.

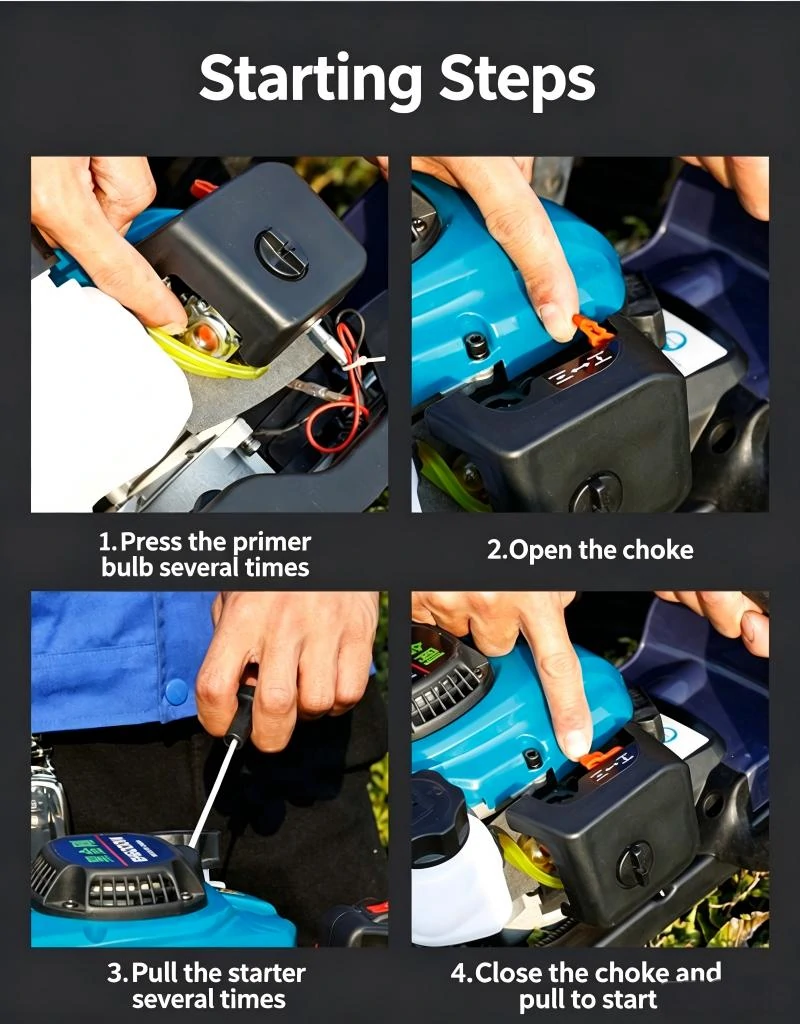

Proper Multi-Stage Starting Procedure
-
Place the trimmer flat on stable ground. Press the transparent primer bulb several times until fuel fills the pump-film carburetor to ensure smooth ignition.
-
Set the ignition stop switch to "ON" and pull open the choke lever to enrich the cold fuel-air mixture.
-
Grip the front handle firmly, steady the base, and tug the recoil starter cord firmly several times to crank the engine and establish compression.
-
Once the engine catches or pops, close the choke lever slightly, pull the starter cord once more to start the engine, and let it idle for 1 minute before throttling.
Safe Field Operation & Angle Adjustment
-
Ergonomic Handling: Always maintain a firm, dual-handed grip on the handle sleeves during trimming. Keep a balanced footing and keep the blade cutting at waist height or below to prevent overreaching.
-

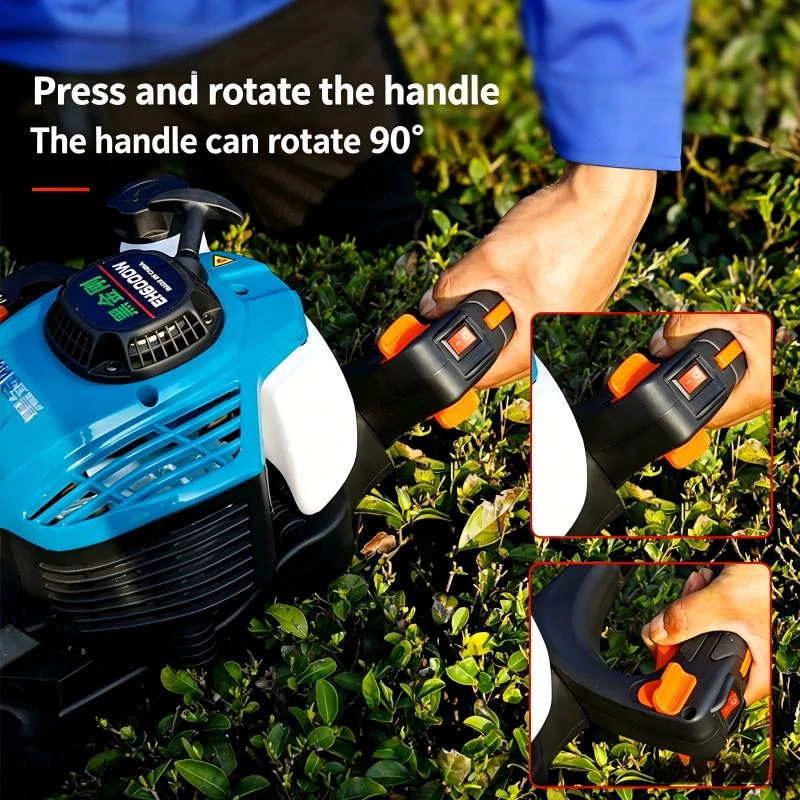

Angle Customization: To handle vertical trimming or awkward corners, press the handle release lever and rotate the 90° adjustable handle to your required orientation for relaxed ergonomics.
-
Debris Clearance: Let the widened, enlarged baffle collect cut leaves and dead twigs smoothly, sweeping them away from your cutting path to keep the blade assembly clear of bind-ups.
Post-Use Maintenance & Long-Term Storage
-
Cool Down Sequence: Release the throttle trigger, let the engine idle for 1–2 minutes to cool down evenly through the ventilation holes, then push the stop switch to "OFF". Allow the blade to come to a complete stop before setting the tool down.
-
Blade Preservation: Clean off crushed sap, leaves, and debris from the SK5 blades. Apply premium blade lubricant across the cutting teeth to ward off rust and oxidation.
-
Storage Protocol: Clean the internal air filter element and clear away sawdust from the engine cylinder fins. Drain all residual fuel from the tank if storing long-term to safeguard the carburetor seals. Store your small garden hedge trimmer inside a dry, clean, and cool locked shed out of reach of children.
Complete 3-Category Repair & Maintenance Spare Parts List
1. Engine System Components
-
Carburetor Assembly (Pump-Film Type)
-
High-Ignition Spark Plug
-
Washable Air Filter Element
-
Inline Fuel Filter & Fuel Line Assembly
-
Easy-Pull Recoil Starter Assembly
-
Heavy-Duty Cylinder & Piston Kit
-
Precision Crankshaft & Bearings
2. Cutting & Drive Mechanical System
-
SK5 Alloy Blade Assembly (600mm Double-Edged)
-
Industrial Gearbox Assembly
-
High-Tensile Connecting Rod
-
Heavy-Duty Centrifugal Clutch Assembly
-
Specialized Blade Screws & Lock Washers
3. Control, Safety & Field Maintenance Kit
-
Ergonomic Throttle Trigger & Cable
-
Toggle Stop Switch & Integrated Choke Switch
-
Four-Spring Anti-Vibration Shock Mounts
-
90° Rotatable Handle Grip Assembly
-
Expanded Blade Guard & Widened Baffle Shield
-
Fuel Mixing Bottle & Multi-Tool Kit (Allen Keys, Screwdrivers)
-
Premium Blade Lubricant & High-Temperature Grease
