Metal Gas Engine Portable Handheld Leaf Blower | XH-5800
Description
XH-5800 Industrial Metal Gasoline Air Blower is a high-velocity, professional-grade clearing solution engineered for municipal sanitation, large-scale commercial landscaping, emergency snow removal, and wildland fire fighting.
Constructed with a heavy-duty iron and aluminum metal chassis, this premium portable handheld leaf blower is powered by a high-torque 54.5CC 2-stroke engine that delivers an air displacement volume of 1400 m³/h. Unlike retail plastic blowers that fracture under tough site impacts or thermal stress, this commercial leaf blower features an optimized 1E45.2F motor and a full stainless steel internal impeller to ensure continuous, non-stop performance during rigorous civil and industrial applications.
Key Selling Points & Visual Breakdown
As demonstrated across our technical product profiles, the XH-5800 incorporates critical industrial-grade enhancements:
-

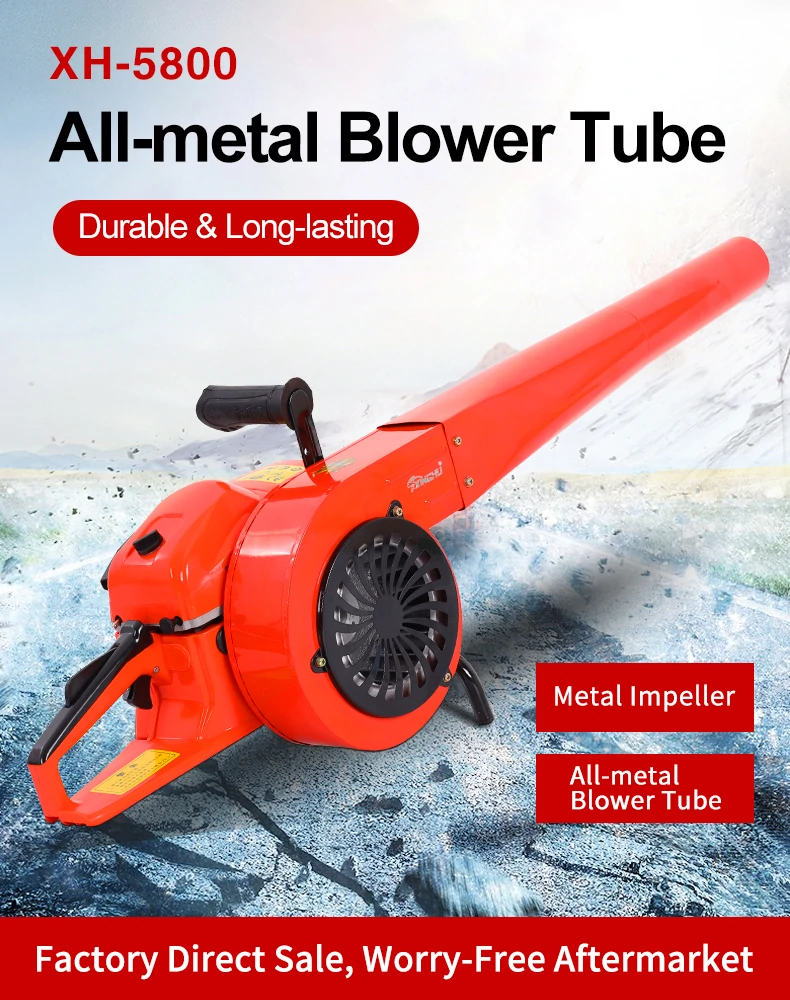

Full Metal Construction Shell: Upgraded structural housing featuring an integrated red metal air duct and a durable metal fan casing. It provides supreme heat resistance and anti-deformation capabilities during intense clearing and fire mitigation tasks.
-
Stall-Free Continuous Operation: An optimized engine air intake circulation system ensures stable running profiles under maximum continuous loads, entirely preventing structural flameout during long-hour uninterrupted tasks.
-
High-Efficiency Air Circulation Channel: Multi-directional internal air vectors gather and boost wind velocity into a concentrated beam, allowing operators to rapidly blow away thick wet leaves, heavy construction gravel, and packed dust.
-
Lengthened Large-Diameter Iron Air Duct: Extra-long, thick-walled metal ducting amplifies air volume delivery while offering severe heat and fire degradation resistance under extreme climate conditions.
Technical Specifications
| Engineering Parameter | Technical Detail / Specification |
| Product Generic Name | Gasoline Handheld Air Blower |
| Model Code / Item No. | XH-5800 |
| Primary Classification | Handheld Leaf Blower |
| HS Code | 8467890000 |
| Engine Designation | 1E45.2F |
| Engine Architecture | Single-Cylinder, Air-Cooled, 2-Stroke |
| Gross Rated Power | 2.2 KW / 2.4 KW Max @ 8300 rpm |
| Displacement | 54.5 CC |
| Ignition Configuration | Capacitive Discharge Ignition (CDI) |
| Maximum Air Displacement | 1400 m³/h |
| Carburetor Blueprint | Premium Pump-Film Type |
| Fuel Reservoir Volume | 550 ml |
| Fuel Composition Ratio | 25:1 (Gasoline to 2-Stroke Lubricant Oil) |
| Chassis Component Metallurgy | Heavy-Duty Iron + Aluminum + ABS Protective Trims |
| Net Weight / Gross Weight | 8.72 kg / 11.0 kg |
| Export Case Dimensions | 59 x 46 x 41 cm (2 Units / Carton) |
| Available Colorways | Industrial Orange / Bespoke OEM Finishes |

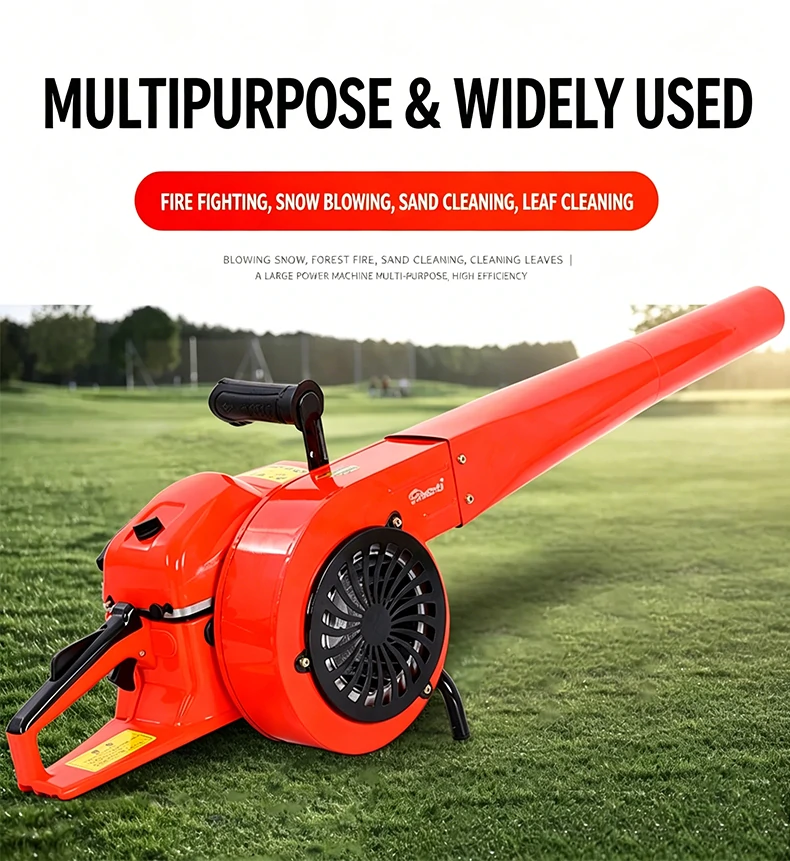

Multi-Scenario Commercial Versatility
The extreme 1400 m³/h high-velocity wind capacity enables this commercial leaf blower to easily transition between multiple professional demands:
-
Municipal Road Sanitation & Landscaping: Slashes labor times required for clearing dense leaf cover, sand beds, and soil debris from urban highway grids.
-
Civil Demolition & Construction Cleaning: Rapidly sweeps down fine concrete dust, drywall residue, and gravel chips from industrial job sites.
-
Emergency Forest & Grassland Firefighting: Functions as an effective wildland containment tool. The high-velocity cold airflow rapidly cools combustible fuel temperatures below their flashpoints, effectively isolating open flames and breaking the combustion triangle.
Core Mechanical Features & Industrial Performance
As demonstrated across our technical product profiles, the XH-5800 incorporates critical industrial-grade enhancements:
-
Full Metal Construction Shell: Upgraded structural housing featuring an integrated red metal air duct and a durable metal fan casing. It provides supreme heat resistance and anti-deformation capabilities during intense clearing and fire mitigation tasks.
-
Stall-Free Continuous Operation: An optimized engine air intake circulation system ensures stable running profiles under maximum continuous loads, entirely preventing structural flameout during long-hour uninterrupted tasks.
-
High-Efficiency Air Circulation Channel: Multi-directional internal air vectors gather and boost wind velocity into a concentrated beam, allowing operators to rapidly blow away thick wet leaves, heavy construction gravel, and packed dust.
-
Lengthened Large-Diameter Iron Air Duct: Extra-long, thick-walled metal ducting amplifies air volume delivery while offering severe heat and fire degradation resistance under extreme climate conditions.
Operation, Precautions & Maintenance Manual
1. Standard Operating Steps
-
Fuel Conditioning: Prepare an absolute 25:1 ratio mix of regular unleaded gasoline and premium 2-stroke lubricant oil. Fill the 550ml fuel reservoir.
-
Ignition Phase: Manually prime the pump-film carburetor bubble, close the mechanical choke valve, and firmly pull the recoil starter cord to ignite the 54.5CC core.
-
Velocity Regulation: Control air volume output seamlessly by manipulating the responsive throttle trigger mechanism.
-
Shutdown Protocol: Release throttle input, fully open the choke valve, allow the engine to idle smoothly for 60 seconds to dissipate residual thermal energy, and depress the switch to stop.
2. Key Operational Precautions
-
Fire fighting Safety: When utilized as a wildland fire fighting asset, ensure operator distance limits are managed safely to prevent direct contact with structural fire sources.
-
Personal Protective Equipment (PPE): Operators must wear industrial ear protectors, high-density dust respirators, and heavy-duty anti-slip gloves at all times.
-
Air Intake Guardrails: Never operate the engine without the high-density air filter element installed; doing so will cause severe cylinder scoring.
-
Tilt Limitations: Avoid excessive mechanical inversion during handling to prevent internal fuel venting.
3. Preventative Daily Maintenance Protocols
-
Air Maintenance: Clean out the integrated air filter mesh after every operational session; replace the filter element immediately if airflow is obstructed.
-
Fuel Stability Management: If storing the equipment for a duration exceeding 7 consecutive days, completely drain the residual fuel lines and tank.
-
Subsystem Diagnostics: Conduct weekly integrity checks on the CDI spark plug tip gaps, fuel supply line connections, and the stainless steel metal impeller alignment.
-
Chassis Protection: Regularly clean down the iron air ducting and metal fan casing to eliminate dust accumulation and safeguard against premature rust.
About XINGHU POWER
Founded in 1995, Yongkang Xinghu Power Machinery Co., Ltd. (XINGHU) is a premier global manufacturing pioneer based in Zhejiang, China. Specializing in high-performance garden machinery, outdoor power equipment, and specialized industrial ventilation systems, we bring decades of technical expertise and a fully integrated production ecosystem to global distributors.
-
Complete Certification Matrix: Our products fulfill rigorous quality metrics and hold international market compliance approvals (ISO, EPA, CE, Euro V, and GSG) to secure uninterrupted customs clearance.
-
Advanced In-House Production: From our dedicated Diemaking Shop for high-precision casting tolerances to our advanced performance Testing Laboratory, every single machine undergoes extreme testing before dispatch.
-
Bulk Container Logistics Optimization: Packed in space-efficient export cartons designed for global maritime freight handling (59 x 46 x 41, gross weight 11kg per package), ensuring low landed-costs per unit.
