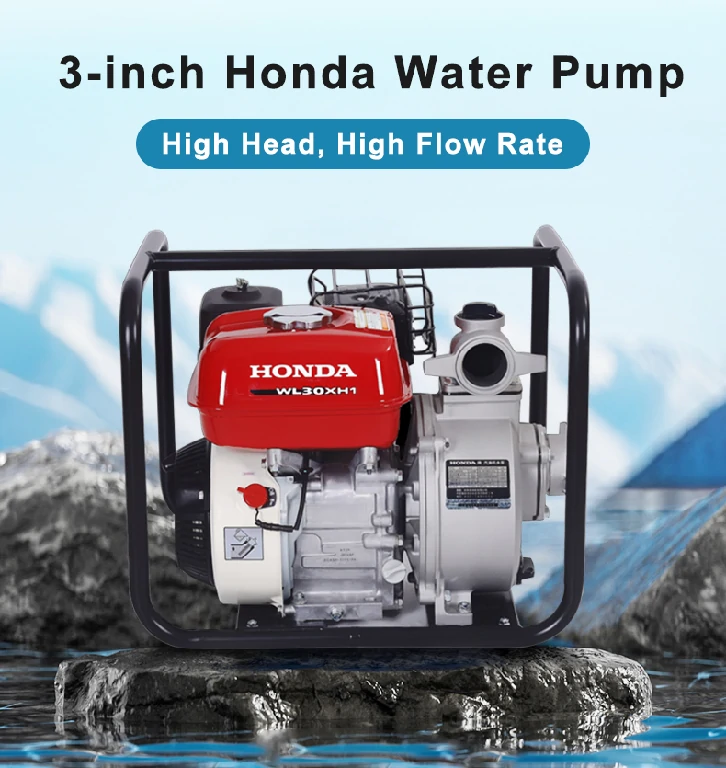

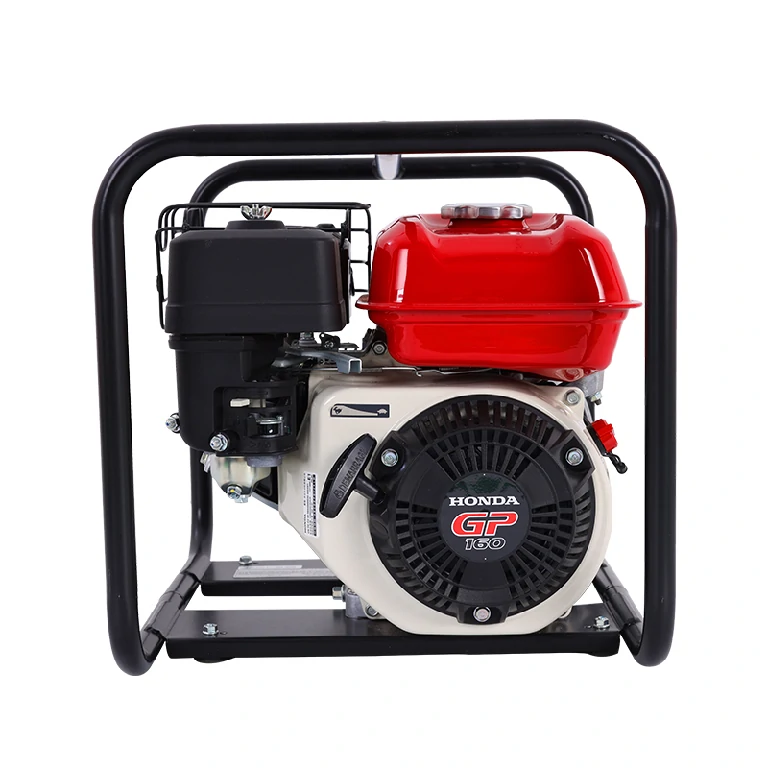

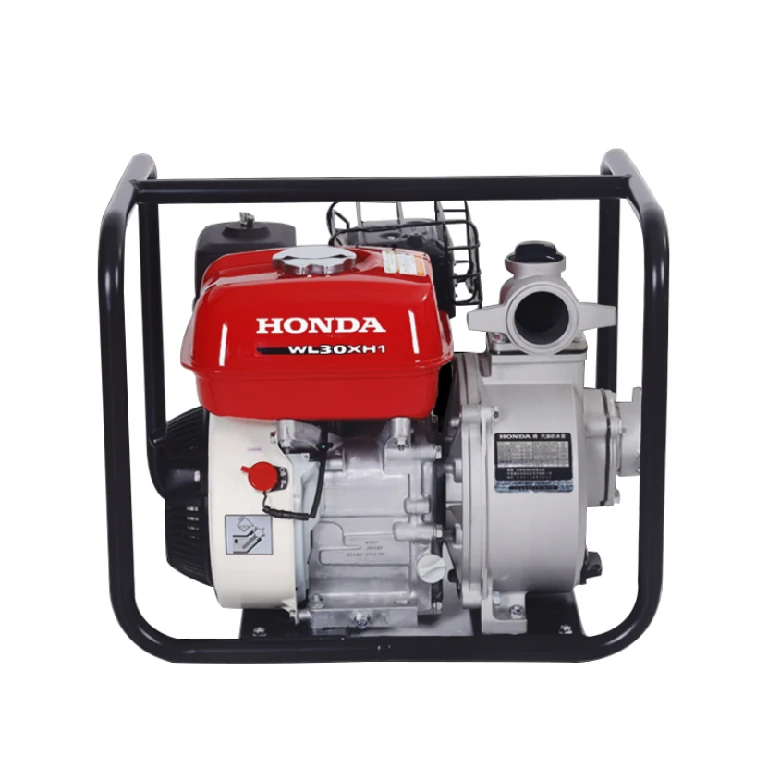

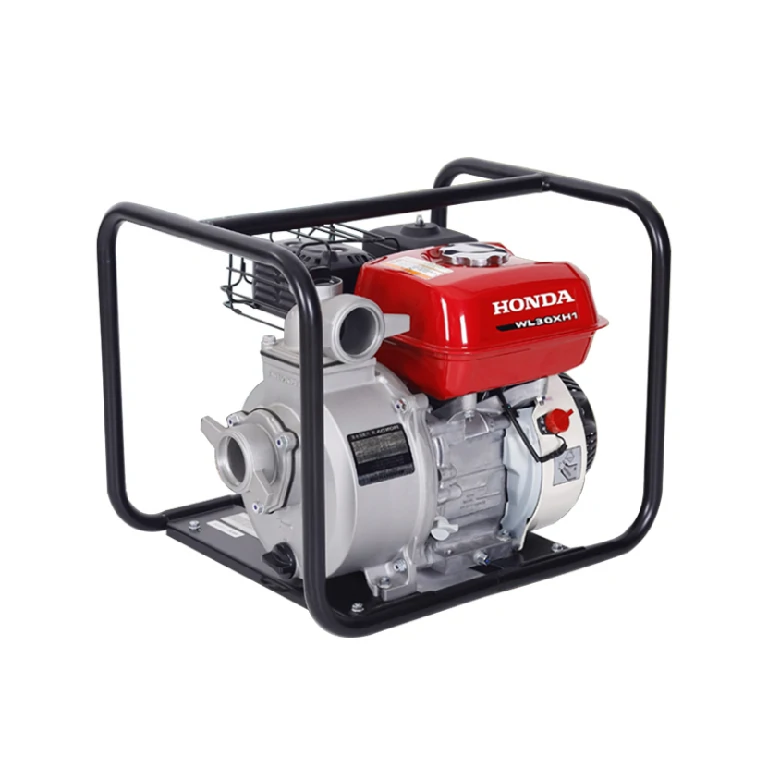

3 Inch Honda Water Pump | WL30XH1
Description
3 inch honda water pump is a commercial-grade, high-flow centrifugal pump designed for heavy-duty agricultural irrigation, flood drainage, and construction dewatering. Powered by a reliable 4-stroke Honda OHV engine, it delivers a massive 39.6 m³/h flow rate and a 15.8m head lift for steady off-grid performance.
Built with a corrosion-resistant aluminum body and a rugged protective steel frame, this portable unit ensures exceptional durability in harsh outdoor environments. Engineered by a premier garden machinery manufacturer, this premium 3 inch honda water pump is the ideal, fuel-efficient choice for global B2B buyers and distributors looking to expand their gasoline water pumps wholesale lines with certified quality.
Key Selling Points & Visual Breakdown
-
Genuine High-End Power System: Driven by a world-class engine, ensuring unparalleled reliability for your 3 inch honda water pump.
-
Direct-Drive Transmission: Direct connection structure eliminates belt slippage and maximizes mechanical energy transfer.
-
High-Volume Discharging Capacity: Achieves a superior flow rate of 39.6 m³/h to drastically reduce project downtime.
-
Fast Self-Priming Mechanism: Rapidly evacuates air from the pump cavity to establish water flow within seconds.
-
Robust Aluminum Pump Volute: Superior resistance to abrasive wear, cavitation, and corrosive agricultural chemicals.
-
Reinforced External Framework: Heavy-duty steel cradle provides 360-degree protection and structural stability.
-
Excellent Fuel Economy: Refined OHV combustion system delivers longer runtimes per tank compared to standard models.
-
Low Maintenance Design: Precision engineering backed by a leading garden machinery manufacturer ensures minimal downtime and high ROI.
-
Global Export Certification: Fully verified factory-direct pricing, complete spare parts supply chain, and reliable OEM/wholesale support.
Technical Specifications
| Parameter Item | Specification Details |
| Pump Model | WL30XH1 |
| Engine Brand & Model | Genuine Honda GP160 / JH168F OHV Engine |
| Rated Power Output | 3.05 kW (≈ 4.1 HP) |
| Rated Operating Speed | 3600 r/min |
| Inlet / Outlet Diameter | 80 mm (3 Inch) |
| Max Flow Rate | 39.6 m³/h |
| Total Head Lift | 15.8 m |
| Max Suction Lift | 5 m |
| Overall Dimensions | 510 × 405 × 435 mm |
| Net / Gross Weight | 27 kg / 30 kg |
Multi-Scenario Versatility for Global Applications
With a massive flow capacity of 39.6 m³/h and a reliable 5m suction lift, this versatile centrifugal pump efficiently handles clean and semi-dirty water transfer across diverse sectors:
-
Agricultural Irrigation: Large-scale farmland irrigation, crop spraying, and orchard watering.
-
Emergency Drainage: Rapid post-storm flood control, basement dewatering, and municipal drainage.
-
Commercial & Landscape Maintenance: High-pressure garden watering, road surface cleaning, and high-place water delivery.

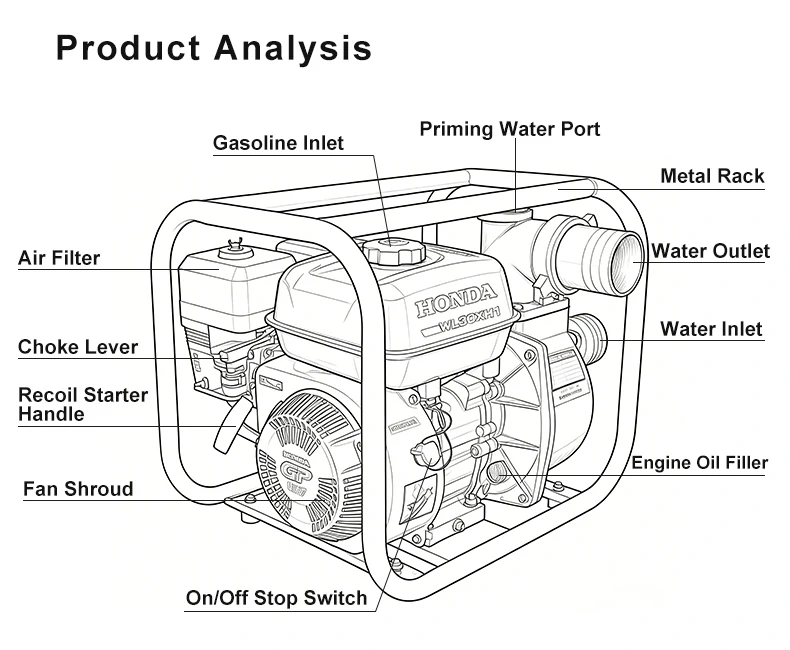

Detailed Product Analysis
- Priming Water Port: Quick-fill port for hassle-free self-priming setup before startup.
- 3-Inch Water Inlet & Outlet: Standard 80mm threaded connections for high-volume fluid discharge.
- On/Off Stop Switch & Choke Lever: Centrally located, intuitive controls for rapid engine management.
- Engine Oil Filler & Cap: Easily accessible port for routine maintenance and lubrication checks.
Standard Operating Procedures
-
Pre-Start Lubrication: Fill the crankcase with premium 4-stroke engine oil to the specified level before operation.
-
Fueling: Fill the fuel tank with clean, fresh unleaded gasoline (never mix oil with gas).
-
Priming the Pump: Unscrew the Priming Water Port cap and fill the pump casing completely with water. Never run the pump dry.
-
Choke Adjustment: Set the On/Off Stop Switch to "ON", open the fuel valve, and slide the choke lever to the closed position (for cold starts).
-
Ignition: Grip the Recoil Starter Handle and pull firmly and steadily until the engine ignites, then return the choke to the open position.
-
Operation Check: Maintain stable engine RPMs and check for smooth water delivery at the outlet hose.
-
Shutdown Procedure: Let the engine idle for 1–2 minutes to cool down, turn the stop switch to "OFF", and close the fuel valve.
-
Post-Use Drainage: Unscrew the drain plug beneath the pump casing to empty all residual water, preventing internal corrosion or freezing damage.
Safety Precautions
-
Ventilation Warning: Operate ONLY in well-ventilated, open outdoor areas to prevent carbon monoxide poisoning.
-
Stable Placement: Position the equipment on flat, solid, and level ground to minimize vibration and shifting during operation.
-
Refueling Hazards: NEVER add fuel while the engine is running or still hot. Allow the unit to cool down for at least 5 minutes before refueling.
-
Thermal Safety: Do not touch the muffler, cylinder body, or exhaust components during or immediately after operation to prevent severe burns.
-
Hose Inspection: Ensure all suction and discharge hoses are tightly clamped and free of kinks prior to starting the engine.
-
Dry Running Ban: Running the pump without priming water will permanently damage the mechanical seals. Always fill the cavity first.
Why Choose Xinghu? — Your Trusted Garden Machinery Manufacturer
As a premier garden machinery manufacturer founded in 1995, Xinghu Power Machinery specializes in the R&D, heavy-duty production, and global marketing of high-end outdoor power equipment. With over two decades of industrial expertise, we provide international B2B buyers with comprehensive, factory-direct sourcing solutions for professional-grade garden and agricultural equipment.
-
Factory-Direct & OEM/ODM Capability: We own and operate advanced manufacturing facilities, supporting fully customized OEM brand placements, structural modifications, and tailored configurations for our entire lineup of gasoline water pumps.
-
Rigorous Quality Control (QC): Every 3 inch honda water pump we produce undergoes strict factory inspections, multi-point pressure testing, and continuous mechanical operation checks to guarantee 100% stable quality and low maintenance rates.
-
Global Export & Compliance: Backed by complete international export certifications, standard industrial packaging, and a reliable spare parts supply chain, we deliver seamlessly to wholesalers, distributors, and commercial contractors worldwide.
