2 Inch Honda Water Pump | XH-WL20XH1 Pump for Irrigation

  • Cool-Running 3.05 kW Engine: Powered by a commercial-grade JH168F 4-stroke OHV engine (4.1 HP) that entirely eliminates the need for gas-oil premixing while delivering low emissions.

  • High-Volume 25.2 m³/h Fluid Flow: Optimizes commercial irrigation and dewatering schedules with an elite flow rate capacity through standard 50mm (2 inch) dual-port connections.

  • Extensive Head & Lift Reach: Engineered with a heavy-duty internal impeller to drive a 22.8-meter total head lift alongside a rapid 5-meter self-priming suction depth.

  • Impact-Resistant Steel Roll Cage: Encased in a reinforced tubular steel perimeter frame that completely shields vital engine parts and doubles as dual-handed transit handles.

Product Detail

Product Overview

XH-WL20XH1 is a commercial-grade, portable self-priming 2 inch honda water pump engineered for rapid fluid transfer, open-field farm irrigation, and emergency flood drainage. This high-efficiency drainage platform is powered by an authentic, fuel-optimized JH168F 4-stroke overhead valve (OHV) engine, delivering a stable 3.05 kW (4.1 HP) of rated power at 3600 r/min.

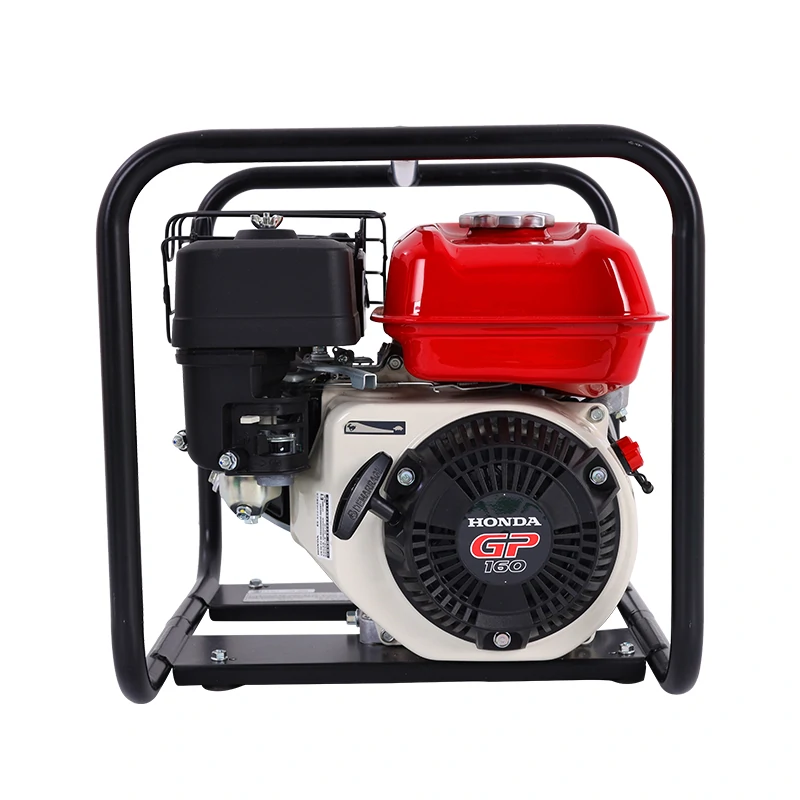

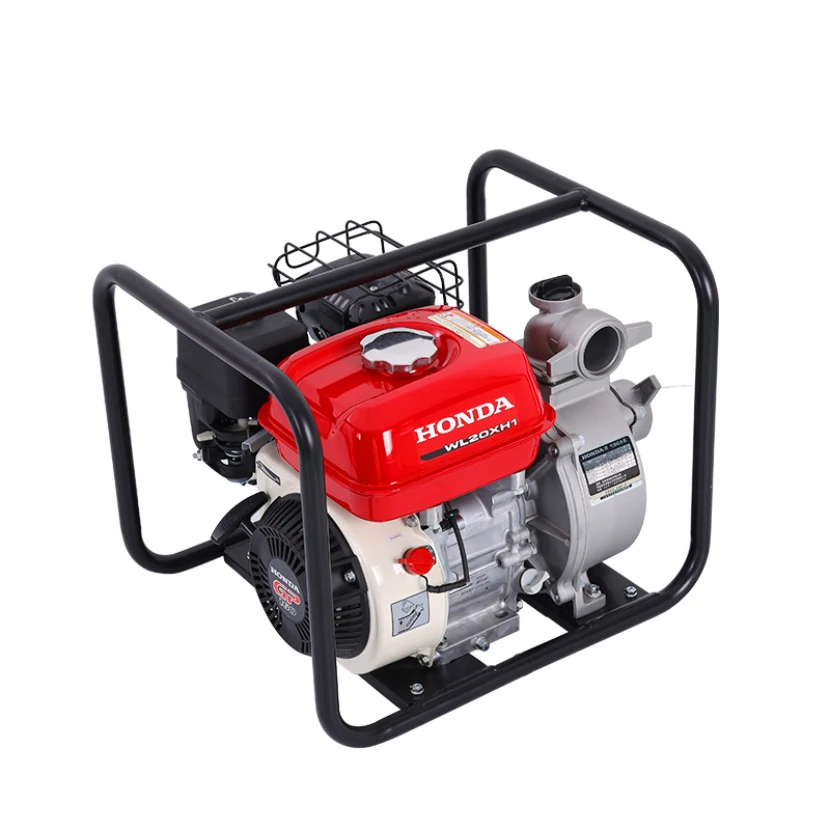

2 Inch Honda Water Pump

Core Product Selling Points

Heavy-Duty Performance for Reliable Water Transfer

  • Optimized Hydraulic Efficiency: Engineered with an advanced impeller design that delivers a high flow volume of up to 25.2 m³/h, significantly reducing operation time.

  • High Head Capability: Achieves a total head lift of up to 22.8 meters with a reliable 5-meter suction lift, making it highly effective for deep-well extraction and uphill water transfer.

Industrial-Grade 4-Stroke Engine Power

  • Robust Power Output: Powered by a commercial-grade 4-stroke engine delivering 3.05 kW (approx. 4.1 HP) at a stable 3600 r/min.

  • Fuel Efficiency & Clean Emissions: Designed for low fuel consumption and minimal emissions, ensuring long continuous run-times on the field without frequent refueling.

Durable, Self-Priming Construction

  • Instant Self-Priming Action: Built-in self-priming mechanism ensures quick setup and seamless operation without complex priming procedures.

  • Rugged Outer Frame: Enclosed in a heavy-duty steel pipe frame that provides superior component protection, reduces operational vibration, and allows easy two-person transport.

Technical Specifications

Parameter Guide Industrial Specifications
Inlet / Outlet Diameter 50 mm (2 inch)
Rated Power Output 3.05 kW / approx. 4.1 HP
Rated Operational Speed 3600 r/min
Maximum Flow Rate 25.2 m³/h
Maximum Total Head 22.8 m
Maximum Suction Lift 5 m
Engine Configuration Heavy-Duty 4-Stroke, Single Cylinder
Dimensions (L×W×H) 490 × 405 × 410 mm
Net Weight 25 kg
Gross Weight 28 kg

Versatile Commercial Applications

Engineered to excel in demanding environments including large-scale agricultural crop irrigation, construction site dewatering, emergency flood drainage, and municipal water supply transfers.

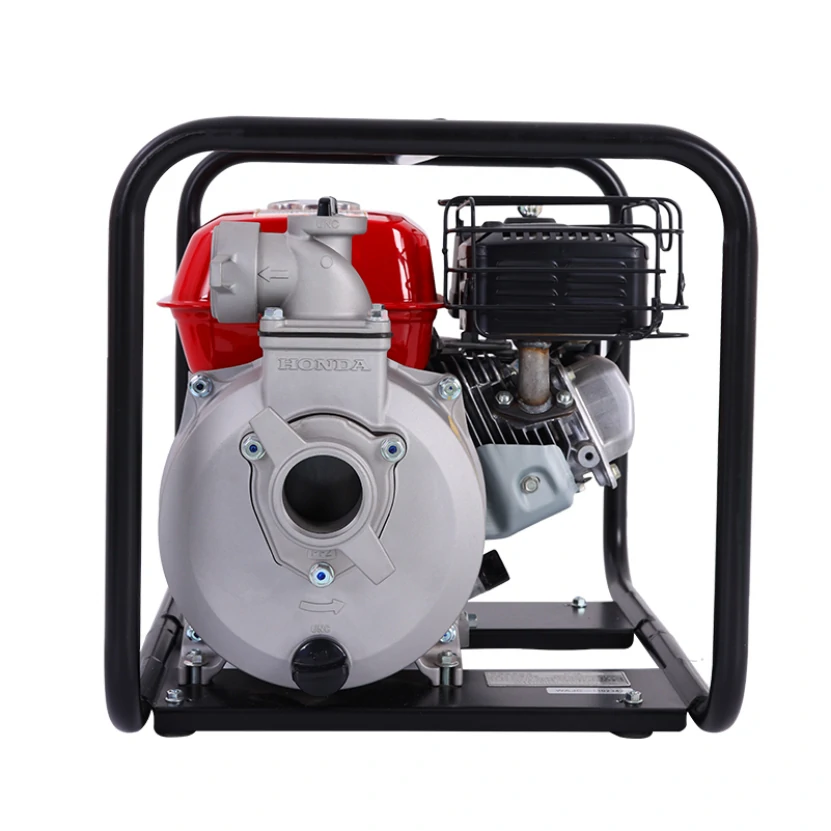

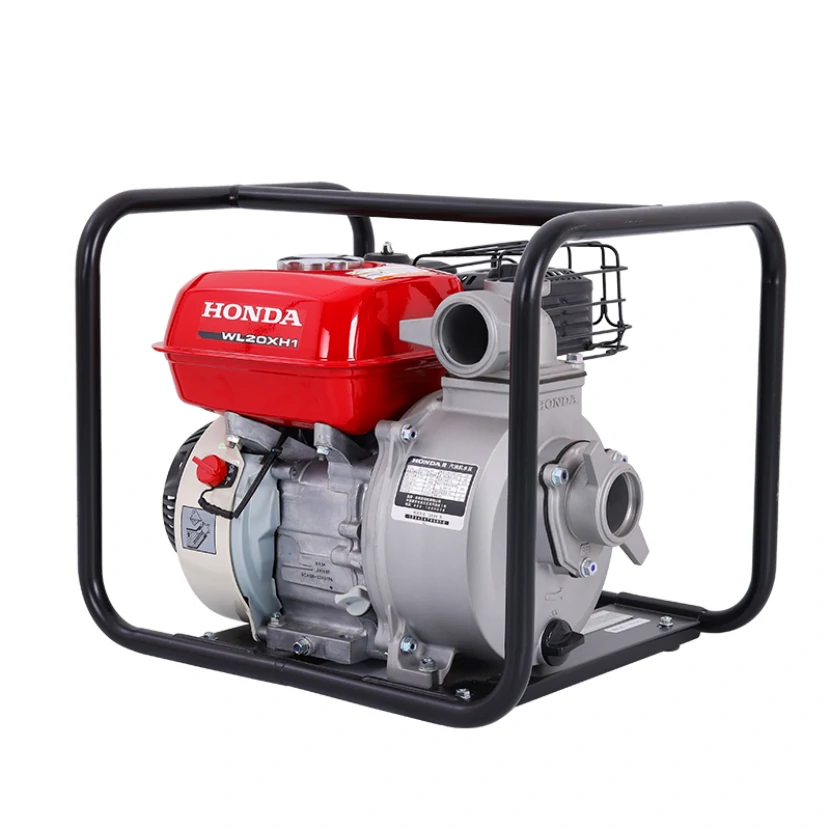

2 Inch Honda Water Pump

Operation Instructions

  1. Add qualified four-stroke engine oil before use
  2. Fill clean unleaded gasoline into the fuel tank
  3. Pour water into pump cavity to finish priming work
  4. Turn on fuel valve and adjust choke position properly
  5. Pull recoil starter steadily to start the engine
  6. Keep stable rotating speed during water delivery
  7. Strictly avoid dry running without water inside pump
  8. Run idle for a while to cool down before shutdown
  9. Drain all residual water after finishing operation
  10. Clean pump surface and check parts condition regularly

Safety Precautions

  1. Only operate in open and well ventilated outdoor areas
  2. Place the pump on flat, solid and stable ground
  3. Stay away from high temperature and rotating components
  4. Four-stroke engine does not need oil-gas mixing
  5. Inspect pipe connection and fasteners before startup
  6. Cut off power once abnormal noise or vibration appears
  7. Keep children away from working pump equipment
  8. Never refuel when the engine is still hot
  9. Do not touch hot machine body right after use
  10. Store the pump in dry and cool indoor environment

XINGHU Introduction

As a premier manufacturer in the power machinery industry, Xinghu is dedicated to delivering high-performance, industrial-grade power solutions for global agricultural, construction, and municipal applications. Driven by technological innovation and rigorous quality control, Xinghu designs robust machinery engineered to withstand the most demanding field conditions.

Among our core product lineups, the high-efficiency gasoline water pump series stands out as a market-proven solution, widely trusted by international buyers for its exceptional flow rates, commercial-grade 4-stroke reliability, and superior fuel economy. Whether it is for large-scale farm irrigation, construction site dewatering, or emergency flood drainage, Xinghu continues to empower businesses worldwide with dependable power, comprehensive technical support, and tailored OEM/ODM manufacturing capabilities.
